  • : Wifi Xirrus XR-2430 giá tốt
  • : Giá Tham Khảo 14.500.000 VNĐ
  • : SWITCH - ROUTER
  • : 12 Tháng
  • : 0932 783 869

Mô Tả

Xirrus XR-2430 Wireless Array

The Xirrus XR-2430 Wireless Array provides superior price/performance value by integrating the unmatched combination of multi-state (2.4GHz and 5GHz) radios with high gain directional antennas, an onboard multi-gigabit switch, controller, firewall, threat sensor and spectrum analyzer all built on a modular chassis designed for future extensibility.

Includes

  • 4-slot chassis supporting up to 4 modular APs
  • 4 450Mbps modular APs with high gain directional antennas and 5GHz/2.4GHz operation
  • Integrated wireless controller with 10 Gbps capacity
  • 1 10/100/1000 Ethernet Uplink
  • ArrayOS operating system including automatic RF tuning (channel, cell size), load balancing, and basic location services
  • Requires purchase of PoE injector supporting 70W or more power.

Unmatched Upgradability

The Xirrus XR-2430 upgradable wireless platform allows a network to scale by upgrading radio technology. Radios can be purchased in either 300Mbps or 450Mbps versions, and every radio is capable of operating at 2.4GHz and 5GHz. The modular platform ensures support for new wireless technologies and is the first 802.11ac/11ad-ready product available.

The Xirrus XR-2430 Wireless Array allows a business to incrementally grow a network, expanding capacity to increase the number of supported devices available over time as the demands on the network grow. The modular architecture and multi-band radios protect the investment with the ability to adapt to future standards and capacity requirements.

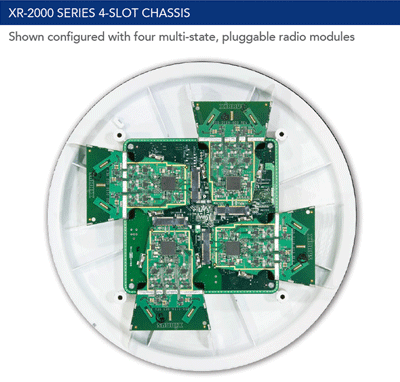

Xirrus XR-2420 Wireless Array Chasis

Xirrus XR-2423 Wireless Array - Technical Specifications

RF Management

  • In-band per IAP Spectrum Analysis
  • Dynamic channel configuration
  • Dynamic cell size configuration
  • Monitor radio for threat assessment and mitigation
  • Wired and wireless packet captures (including all 802.11 headers)
  • Wired and Wireless Packet Captures
  • Radio assurance for radio self test and healing
  • RF monitor

Wireless Protocols

  • IEEE 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n

Wired Protocols

  • IEEE 802.3 10BASE-T , IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T
  • IEEE 802.1q - VLAN tagging
  • IEEE 802.1AX - Link aggregation
  • IEEE 802.1d - Spanning tree
  • IEEE 802.1p - Layer 2 traffic prioritization

Channel Support 2.4GHz (channels available based on country code selected)

  • 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Channel Support 5GHz (channels available based on country code selected)

  • UNI I - Non-DFS channels
  • 36 40 44 48
  • UNI I DFS channels
  • 52 56 60 64
  • UNI II DFS channels
  • 100 104 108 112 116 120 124 128 132 136 140
  • UNI III Non-DFS channels
  • 149 153 157 161 165

Management Interfaces

  • Command line interface Web interface (http / https) Xirrus Management System (XMS)

Management

  • SNMP v1, v2c, v3
  • RFC 854 Telnet
  • RFC 1155 Management Information for TCP/IP Based Internets
  • RFC 1156 MIB
  • RFC 1157 SNMP
  • RFC 1213 SNMP MIB II
  • RFC 1350 TFTP
  • RFC 1643 Ethernet MIB
  • RFC 2030 Simple Network Time Protocol SNTP
  • RFC 2616 HTTP 1.1
  • RFC 3636 Definitions of Managed Objects for IEEE
  • Xirrus Private MIBs
  • RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types
  • RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and Virtual LAN Exten¬sions
  • RFC 2863 The Interface Group MIB
  • RFC 3164 BSD Syslog Protocol
  • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
  • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)

RFC Support

  • RFC 768 UDP
  • RFC 791 IP
  • RFC 2460 IPV6 (Bridging only)
  • RFC 792 ICMP
  • RFC 793 TCP
  • RFC 826 ARP
  • RFC 1122 Requirements for internet hosts - communication layers
  • RFC 1542 BOOTP

Security

  • WPA
  • IEEE 802.11i WPA2, RSN
  • RFC 1321 MD5 Message-digest algorithm
  • RFC 2246 TLS protocol version 1.0
  • RFC 3280 Internet X.509 PKI certificate and CRL profile
  • RFC 4347 Datagram transport layer security
  • RFC 4346 TLS protocol version 1.1

Encryption Types

  • Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits
  • SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit modular AP

Authentication

  • IEEE 802.1x
  • RFC 2548 Microsoft vendor-specific RADIUS attributes
  • RFC 2716 PPP EAP-TLS
  • RFC 2865 RADIUS Authentication
  • RFC 2866 RADIUS Accounting
  • RFC 2867 Tunnel Accounting
  • RFC 2869 RADIUS Extensions
  • RFC 3579 RADIUS Support for EAP
  • RFC 3748 EAP-PEAP
  • RFC 5216 EAP-TLS
  • RFC 5281 EAP-TTLS
  • RFC 2284 EAP-GTC
  • RFC 4186 EAP-SIM
  • RFC 3748 Leap Pass through
  • RFC 3748 Extensible Authentication Protocol
  • Web Page Authentication: WPR, Landing Page, Redirect, Support for Internal WPR, Landing Page and Authentication, Support for External WPR, Landing Page and Authentication

Regulatory Compliance

  • CE Mark
  • Safety: UL 60950-1:2003, EN 60950:2000, EMI and susceptibility (Class A)
  • U.S.:FCC Part 15.107 and 15.109: Canada: ICES-003, Europe: EN 55022, EN 55024

Physical Specifications

  • Dimensions (no connectors): 2.75 x 11.25 x 11.25 in.
  • Weight: 2.2lb
  • Does not include mounting bracket

Environmental Specifications

  • Operating Temperature: 0 to +55C
  • 0-90% humidity, non-condensing
